What is a Gambrel Roof?
A gambrel roof is a distinctive two-sided roof design that features two slopes on each side: a steeper lower slope and a shallower upper slope. This classic architectural style is most commonly associated with Dutch colonial and American barn architecture, where it was utilized to maximize usable headroom in the upper levels while providing efficient water drainage.
The beauty of a gambrel roof lies in its ability to create significantly more interior space compared to a traditional gable roof with the same exterior dimensions. The steep lower slope provides excellent weather protection and prevents snow accumulation, while the gentler upper slope allows for expanded attic or living space within the structure.
Today, gambrel roofs are popular in modern residential construction, barn conversions, and historical restoration projects, offering both aesthetic appeal and practical space utilization for homeowners and builders alike.
How to Calculate Gambrel Roof Angles and Dimensions
Calculating a gambrel roof requires careful consideration of the two slopes, their angles, and how they intersect. There are two primary methods for calculating gambrel roof dimensions: the two-pitch method and the half-circle method.

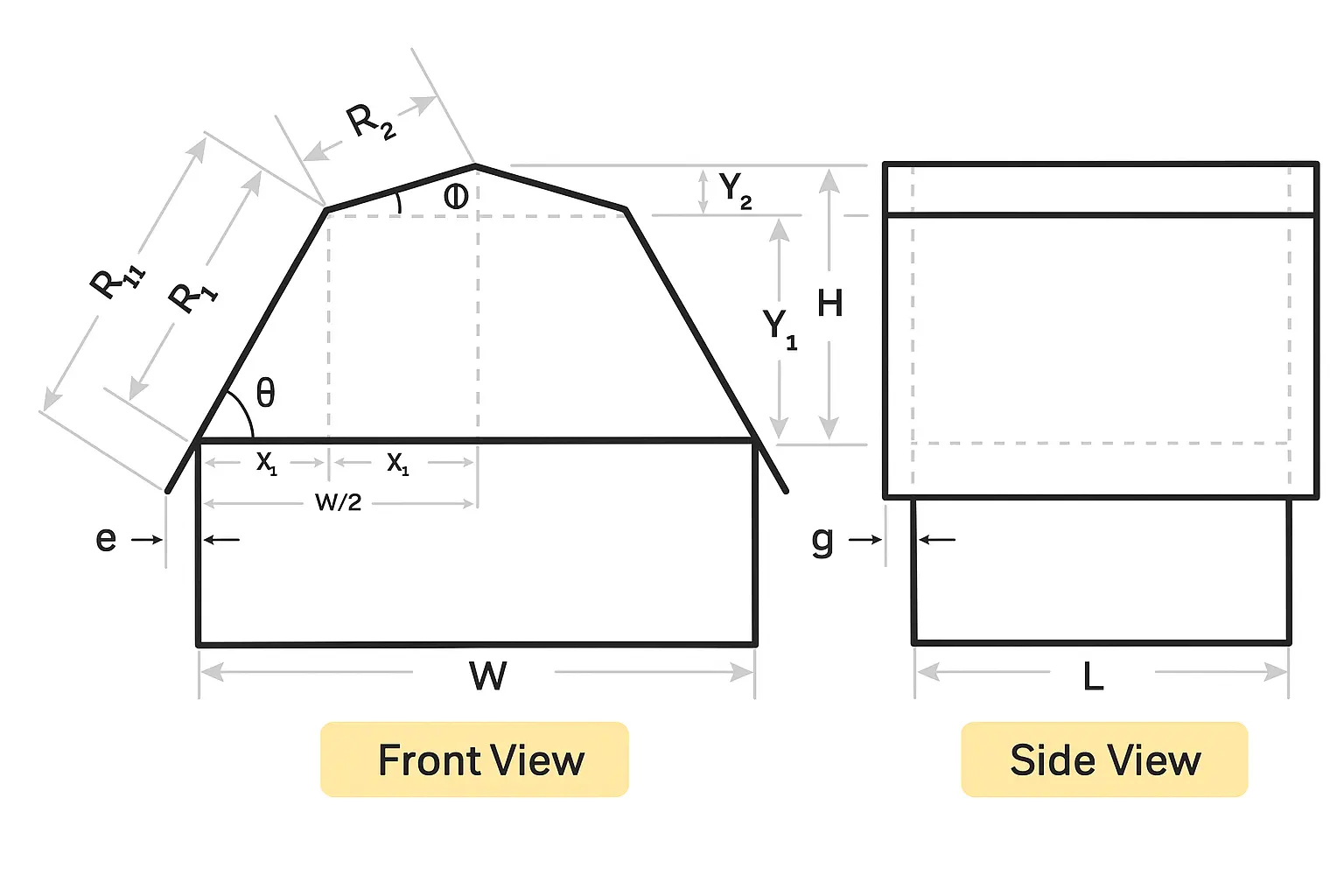

Two-Pitch Method
The two-pitch method is the most straightforward approach, where you specify the angles of both the lower and upper roof segments. This method provides maximum control over the roof's proportions and is ideal when you have specific design requirements or architectural constraints.

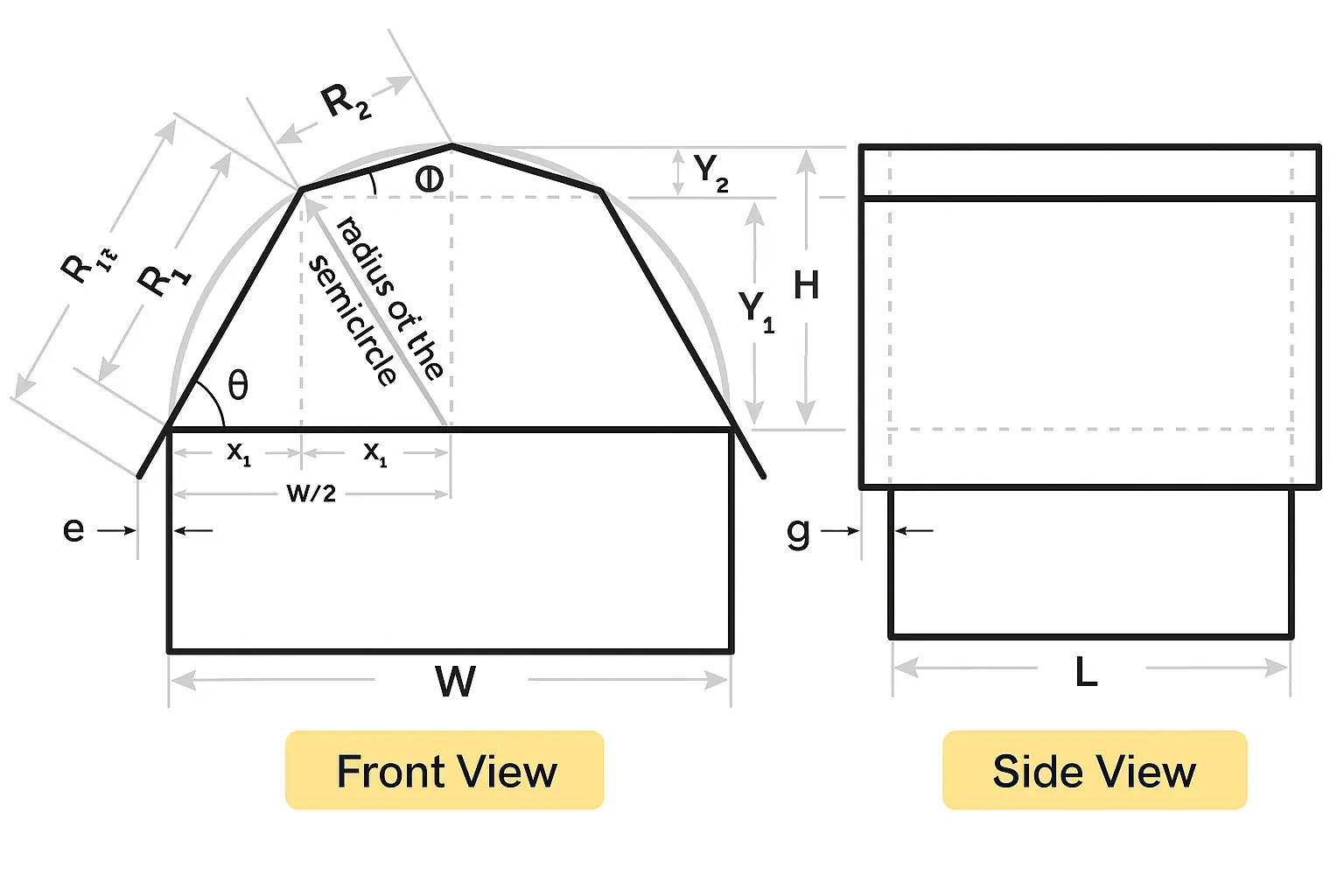

Half-Circle Method
The half-circle method involves designing the gambrel roof based on a semicircular arc, creating a more geometrically pleasing and balanced appearance. This method automatically determines the angles based on the roof height, resulting in smooth, continuous curves.
Frequently Asked Questions
What's the difference between a gambrel roof and a mansard roof?
While both feature two slopes on each side, a gambrel roof has a steeper lower slope and is typically symmetric. A mansard roof, on the other hand, often has four sides (if hipped) and the upper slope is steeper than the lower slope in traditional French design.
What angles work best for a gambrel roof?
Typical gambrel roofs use a lower angle of 45-60 degrees and an upper angle of 10-25 degrees. The exact angles depend on your climate (for snow shedding), aesthetic preferences, and local building codes. Our calculator helps you experiment with different angle combinations.
Can I use a gambrel roof in areas with heavy snow?
Yes, gambrel roofs can work in snowy climates. The steep lower slope helps shed snow effectively. However, you may need additional structural reinforcement, proper insulation, and possibly snow guards depending on your local building codes and specific snow load requirements.
How do I calculate roof pitch for a gambrel roof?
Gambrel roofs have two pitches: one for the lower section and one for the upper section. Pitch is calculated as rise over run. You can use our calculator to determine both pitches by entering the angles - it will automatically compute the pitch in degrees, percentage, and x:12 ratio.
Which method should I use: two-pitch or half-circle?
Use the two-pitch method if you have specific design requirements, architectural constraints, or want precise control over angles. Choose the half-circle method if you're aiming for a traditional barn aesthetic with automatic geometric balance. The half-circle method is ideal for restoration projects where authenticity matters.
Do I need special calculations for overhangs?
Yes, overhangs are crucial for protecting your walls and foundation from water damage. Our calculator includes eaves overhang (along the sides) and gable overhang (at the ends) in all calculations, ensuring accurate material estimates including shingles, underlayment, and trim.
